Loflin XHD Root Grapple

Loflin Fabrication

Loflin XHD Root Grapple

MPN: LOF-RG-XHD

$2,541.82
Direct Shipment from Manufacturer

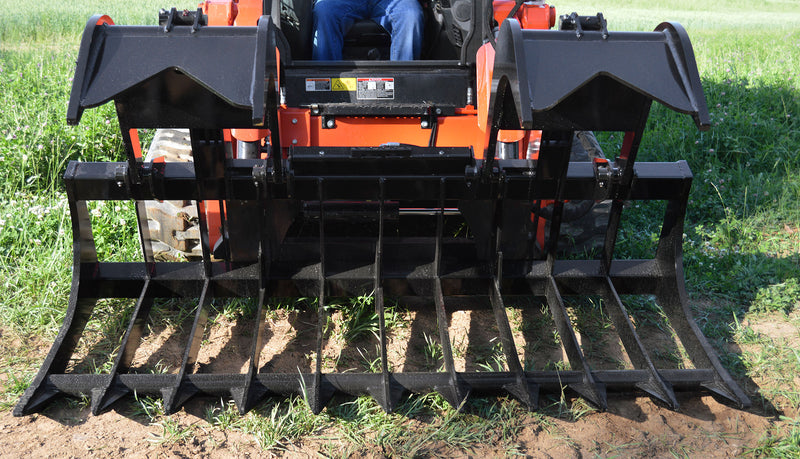

The Loflin XHD Root Grapple is a heavy-duty root grapple for skid steers up to 110 HP
Free shipping over $2,500 within the contiguous U.S.
Manufacturer warranty included
Typical processing: 5–7 business days for in-stock items
Questions? (215) 839-9093
Accepted Payment Methods:
American Express Apple Pay Bancontact BLIK Diners Club Discover EPS Google Pay JCB Maestro Mastercard Multibanco MobilePay PayPal Przelewy24 Shop Pay Twint Union Pay Visa
Shipping Policy | Return Policy | Warranty Info

The Loflin XHD Root Grapple is a heavy-duty root grapple for skid steers up to 110 HP. It is designed for demanding land clearing, construction, and forestry applications, allowing operators to rake, grapple, and load material with a single attachment.

Key Specs

  • Available Widths: 72", 78", 84"
  • Grapple Opening: 33.25"
  • Tine Thickness: 0.5" inner, 1" outer
  • Tine Spacing: 8.5" - 9"
  • Hydraulic Cylinders: 2" x 10"
  • Grappling Force: 9,500 lbs
  • Pins: 1.25" greasable

Features

  • Independent grapple tines for uneven loads
  • Fully enclosed hydraulic cylinders and hoses
  • Equipped with Parker hoses, fittings, and couplers
  • Reinforced skid steer quick attach plate
  • Curved tines slide across the ground without digging in
  • Fully greasable hinge points for extended service life

Built For

  • Clearing roots, logs, brush, and rocks
  • Job site cleanup and demolition debris handling
  • Separating dirt and smaller material from large debris
  • Loading and piling logs and other forestry materials
